SunSynk 5kW 10.24kWh 51.2V Self Consumption Solar Power System. Maximize your solar investment with SunSynk’s efficient 5kW system. Achieve self-sufficiency and reduce your energy costs with 10.24kWh of battery storage and 51.2V of power output.

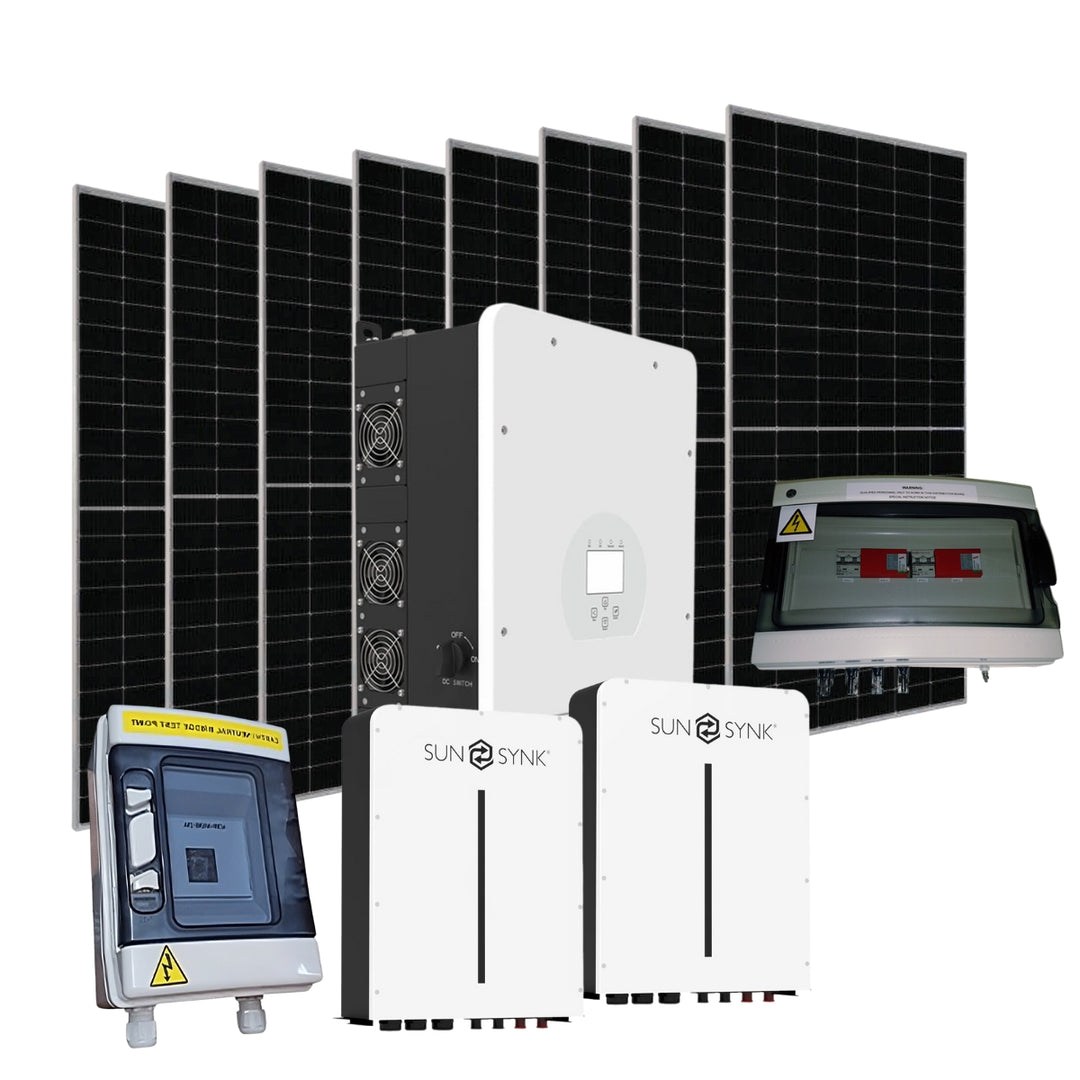

Kit Components

• 1 x SunSynk 5KW 48V Hybrid Inverter
• 2 x Sunsynk Wall Mount 5.12kWh 51.2V Lithium Battery
• 8 x Canadian Solar 555W Super High Power Mono PERC HiKU6 with MC4-EVO2
• 1 x Earth Neutral Bridge 25A AC
• 1 x Protection Box PV on Roof and Hazard Labels Pack
• 2 x 25mm2 single-core HV DC cable 1m – Pair
• 1 x 4mm² single-core DC cable 25m – Black
• 1 x 600V Protection Box 2 Inputs 2 Outputs 16A Isolator Type I_II SPD
• 3 x K&N 40A Single Phase AC Switch Disconnector
• 2 x MC4 Pre terminated cable 2m
• 1 x MC4-EVO2 Connector Twin Pack

Solar Panel Specifications

• Weight: 27.6 kg
• Rated Power: 550 W
• MCS Reference: BABT8767-50-550W
• Length: 2,278 mm
• Width: 1,134 mm
• Depth: 30 mm
• VMPP: 41.7 V
• IMPP: 13.2 A
• Isc: 14 A
• Voc: 49.6 V
• Temp. Coefficient (Mpp): -0.34 %
• Clamp position on panel: Long side only
• Connector Type: MC4
• Efficiency: 21.3 %
• Pallet Size: Oversized

Hybrid Inverter – SunSynk 5KW 48V

• Operating Temperature Range: -40~60 ºC, >45 ºC Derating
• Cooling: Smart cooling
• Noise: <30 dB
• Communication with BMS:RS485; CAN
• Weight: 20.5kg
• Cabinet size: 330W×580H×232D mm (Excluding connectors and brackets)
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Warranty: 5 Years
• SA: NRS 097 certified and COCT Certified

Battery Features – SunSynk Wall Mount 5.12kWh 51.2V Lithium Battery

• Battery Chemistry: Lithium Ferro Phosphate (LifePO4 or LFP)
• Capacity: 100 Ah
• Scalability: Max. 32 pcs in parallel (163.8kWh)
• Nominal Voltage: 51.2 V
• Operating Voltage: 43.2~57.6 V
• Energy:5.12 kWh
• Usable Energy:4.61 kWh
• Charge/Discharge Current:
• Recommend: 50A
• Max: 100A
• Peak(2mins, 25) 150A
• Other Parametre
• Recommend Depth of Discharge: 90%
• Dimension (W/H/D):440*620*135mm (don’t include Circuit Breaker, terminals and hanging boards)
• Weight Approximate: 50kg
• Master LED Indicator:5 LED (SOC 20%~100%), 3 LED (working, alarming, protecting), IP65
• Working Temperature: Charge: 0ºC ~ +55ºC (optional heating: -20ºC~+55ºC), Discharge: -20ºC ~ +55ºC
• Storage Temperature:-20ºC ~ +35ºC
• Humidity: 5% ~ 95%
• Altitude: ≤2000m
• Installation: Wall Mounted or 19-inch standard cabinet
• Communication Port: CAN2.0, RS485
• Certification: IEC62619, CE, UN38.3
