Description

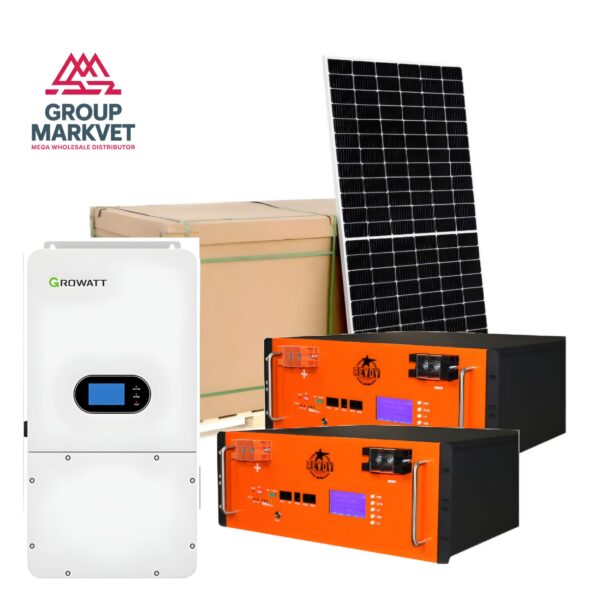

This Combo Consists of the following:
- 1 x Growatt SPH 48V 10.0KW Hybrid Inverter | SPH 10000TL-HU-US
- 2 x Revov R100 5.1kw Lithium battery
- 12 x 540w solar panels
- 8 x 3.5m Rails
- 30m x 6mm Red solar cable
- 30m x 6mm Black Solar cable
- 24 x solar panel roof hooks
- 20 x PV Mid Lock
- 8 x PV End Lock
- 2 x Combiner box 1in 1out
- 3 x Battery Cable set
- 1 x latch fuse holder
- 2 x 125A fuse
- 4 x Rail Extension
- 1 x AC Combiner Box
- 2 x Battery Wall mount Bracket
Growatt SPH 48V 10.0KW Hybrid Inverter | SPH 10000TL-HU-US
1.5 DC/AC Ratio with 3 Mppts
Up to 200A charging / discharging current
120V/240V Spilit AC output
UPS function, 10ms transition
Support DC-Coupled, AC-Coupled, AC-retrofit applications
Type II Surge protection for DC and AC sides
Support charge from diesel generator
Support both single phase and split phase application
Weight: 110lbs
Key Features
Leading Functions
– UPS function, 10ms transition
– Scalable system available
– Up to 200A charging/discharging current
High Yields
– DC/AC ratio up to 1.5
– MPP trackers up to 3
– Max. efficiency 97.5%
System Compatibility
– Support DC-Coupled AC-Coupled System;
– Support diesel and gas generator
– Support Lithium battery and lead-acid battery
PV Input Data
Max.PV Power Input: 15000W
Max.DC Voltage: 525V
No. of MPPT: 3
No. of PV Strings per MPPT: 2
Max. input current per MPPT: 22A
Max. short-circuit current per MPPT: 27A
Output Data
AC nominal power: 10000W
Nominal AC Voltage output: 120V/240V Split ( 180Vac – 280Vac )
Max. output current: 50A
Battery Data
Battery voltage range: 40~60V
Max charging and discharging current: 200A
Continuous power: 10000W
Type of battery: Lithium / Lead-acid
Advanced Protection & Safety
UL certificated( UL1741 ), CA Rule21
PV switch integrated
AC over current/voltage protection
Ground fault monitoring
Grid monitoring
Anti-islanding protection
Residual-current monitoring unit
Insulation resistance monitoring
AFCI protection
Surge protection
Revov R100 51.2V 100Ah 5.1kWh lithium battery
REVOV is excited to offer the R100 EV battery, with a 1C Continuous discharge rate and a warranty covering up to 6000 cycles – offering superior performance at the lowest available cost per cycle for a lithium-iron battery of its type in South Africa.
The R100 battery is an automotive-grade lithium-iron phosphate (LiFePO4) battery with a 16-cell configuration with built-in Battery Management System (BMS). It offers exceptional performance, with 5kWh capacity, a depth of discharge up to 100% and a 10-year warranty.
It is the perfect choice to provide backup power and integrate into Solar systems where daily cycling of the system is desired. It is common to install just one battery to deal with blackouts but grow the system later. More batteries can be added easily onto a shared busbar for those reducing grid power usage in a phased approach.
Specifications and Features:
- Best cost per cycle for a lithium-iron battery
- expected lifetime of 10+ years at 25°C
- suitable for daily cycling
- lightweight and suitable for wall mounting
- integrated battery management system, with LCD display
- extreme temperature resilience
- compatible with all known Victron and Sunsynk inverters
- 1C battery with 100% Depth of Discharge Capabilities.
Datasheet:
540w Solar Panels
Offers better temperature-dependent performance and enhanced tolerance for mechanical loading.
Features
-Higher power output
-Less shading
-Lower resistive losses
-Lower LCOE Growatt SPH 48V 10.0KW Hybrid Inverter | SPH 10000TL-HU-US Inverter offers a range of advanced features. With higher power output, it provides increased efficiency and performance. Additionally, it minimizes shading effects, reduces resistive losses, and ultimately lowers the levelized cost of energy (LCOE).
