Description
- insulation.
- The possibility of working at relatively high voltage fluctuations For single-phase motors 160-250V, three-phase motors 320-450V.
- Due to the smaller dimensions of IBQ pumps compared to traditional pumps, drilling costs and installation costs are considerably lower.
APPLICATION:
Water supply of individual houses and agricultural households from deep wells. Irrigation of gardens and orchards. Land drainage. Water pipe systems. Industry.
The IBO Dambat company was founded in Poland in 1999 and since then has concentrated its activity and production in the field of water pump technology.
IBO Dambat Poland is one of the most well-known manufacturers of pumps and hydrophores, but at the same time an importer, exporter and distributor of pumps from top manufacturers in Europe and the world.

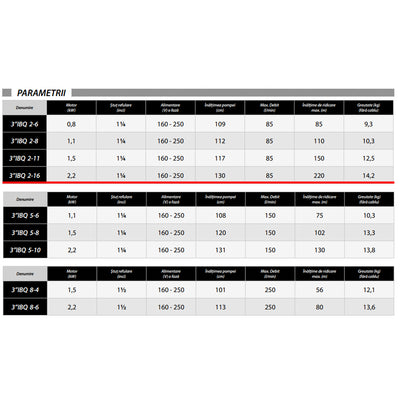

Technical specifications
- Name: 3″IQB 2-16
- Engine (kW): 2.2
- Discharge nozzle (inches): 1¼
- Supply (V) one phase: 160-250
- Pump height (cm): 130
- Maximum flow (l/min): 85
- Maximum lifting height (m): 220
- Weight (kg) without cable: 14.2
Operating conditions:
- Maximum liquid temperature 35°C
- Maximum ambient temperature 35°C
- Insulation class F
- Working mode – continuous
- Degree of protection – IP68
Materials:
- Suction/discharge body: stainless steel AISI 304
- Housing: stainless steel AISI 304
- Shaft and rotor: stainless steel AISI 304
- Turbine: noryl
- Speaker: noryl
- Mechanical sealing: Ceramic/Sic/NBR
- Engine: oil cooled/equipped with corrugations
- Motor rotation speed: 2850RPM
- Cable length: 20 m
Made in Poland.
