Description

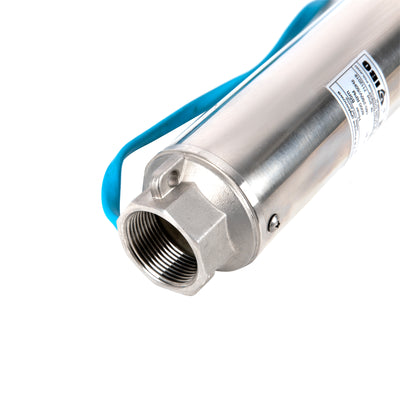

HIGH SPEED SUBMERSIBLE PUMPS IBQ
IBQ multistage centrifugal submersible pumps are intended for operation in boreholes and open water tanks. Compared to other submersible pumps, IBQ pumps are distinguished by the use of a modern energy-saving motor, which uses permanent magnets and a frequency converter. The result of this solution is an engine that reaches 6000 rpm, obtaining at the same time a very high efficiency. The use of permanent magnets and an inverter in the motor structure offers many advantages over traditional pumps. These are among others:
Technical specifications
- Name: 3″IQB 5-8
- Engine (kW): 1.5
- Discharge nozzle (inches): 1¼
- Power supply (V) one phase: 160-250
- Pump height (cm): 120
- Maximum flow (l/min): 150
- Maximum lifting height (m): 102
- Weight (kg) without cable: 13.3
Operating conditions:
- Maximum liquid temperature 35°C
- Maximum ambient temperature 35°C
- Insulation class F
- Working mode – continuous
- Degree of protection – IP68
Materials:
- Suction/discharge body: stainless steel AISI 304
- Housing: stainless steel AISI 304
- Shaft and rotor: stainless steel AISI 304
- Turbine: noryl
- Speaker: noryl
- Mechanical sealing: Ceramic/Sic/NBR
- Engine: oil cooled/equipped with corrugators
- Motor rotation speed: 2850RPM
- Cable length: 20 m
Made in Poland.
Brand: IBO DAMBAT
